Railings Installation in Vernon Hills, IL

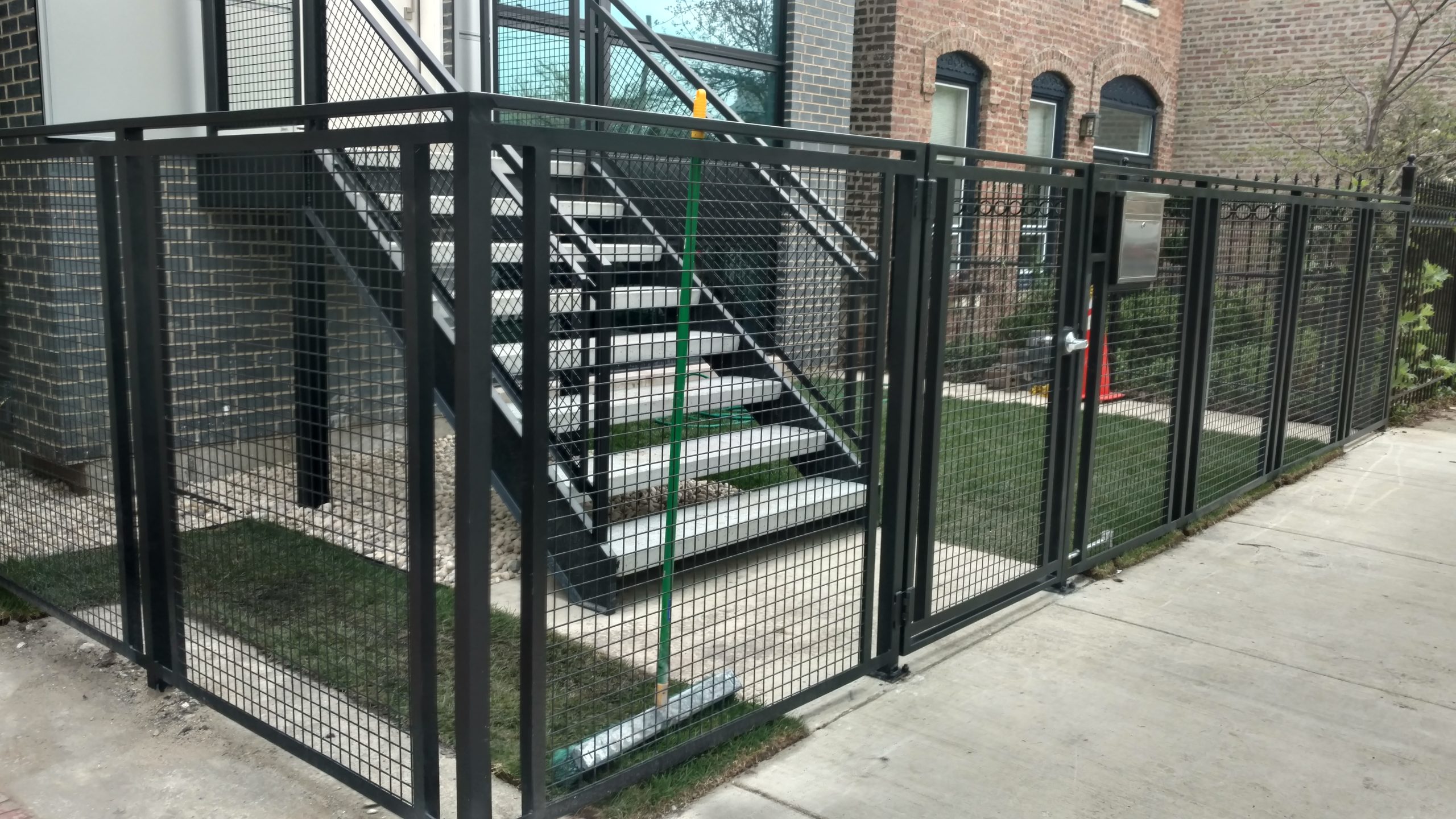

When we arrived in Vernon Hills, the client wanted something modern, secure, and functional — something that could enhance the building’s appearance while still offering true safety. We designed and installed a full steel railing system with wire mesh panels, integrated gates, and a powder-coated finish. Every angle, every line had to align perfectly, not just for aesthetics but for long-term structural reliability. At Steel Porch Chicago, we live for this kind of precision.

What made this Vernon Hills project truly technical was the mirror cutting involved in the frame fabrication. The gates and mesh panels had to mirror each other side by side, across multiple sections and corners. That meant every steel frame had to be reverse-cut and welded in perfect symmetry — so that spacing, support, and locking hardware would align exactly on both sides. Even a 1/8″ difference could throw off the gate’s swing and panel tension.

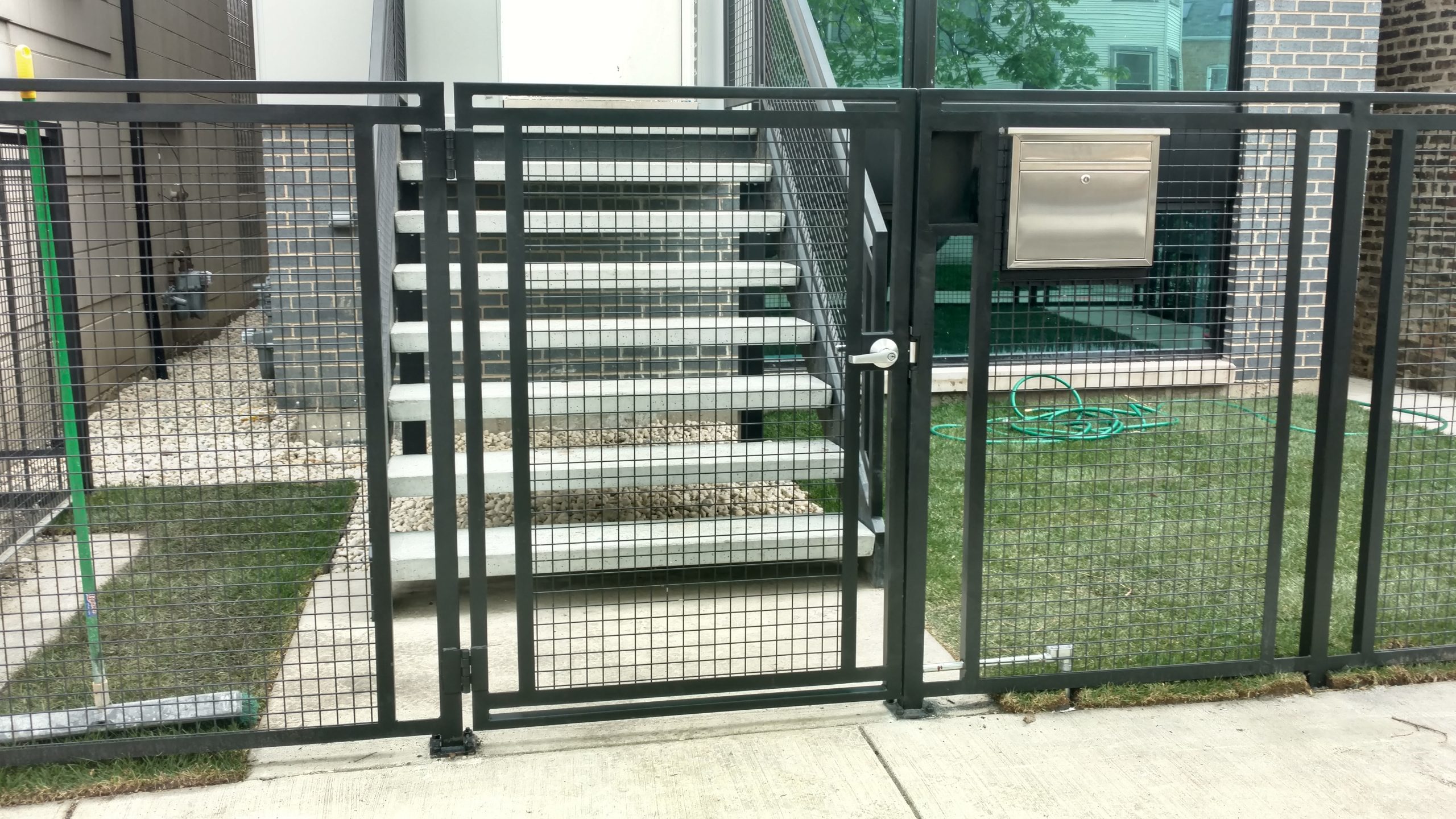

Each post and top rail was fabricated from 2″x2″ square steel tubing, mirror-cut and then welded to custom mounting brackets anchored into the concrete slab. The wire mesh inserts were pre-cut and tack welded inside the steel frames using MIG welders, with every seam polished and ground for a seamless finish. The gate latch zones were especially challenging since they required both mirror-cut panel reinforcement and fully aligned latch receivers. That meant dry-fitting each gate twice before final weld.

The stairs also received railing panels fabricated to match the fence’s visual flow. These were trickier due to the incline. Our team created angular templates to ensure the mirrored side rail matched the existing angle of ascent, with mirrored steel posts welded at the exact opposite positions. Once we completed the dry fit, we coated the entire structure with a matte black powder finish that offers both rust resistance and modern appeal.

Every railing and gate we install must pass our stress tests—so in Vernon Hills, we gave every weld a visual inspection and torque test before sign-off. It’s not just about looks, it’s about safety and strength. Whether it’s securing pets, keeping kids safe, or simply marking off private property with style, our railing systems are built to meet every demand.

If you’re anywhere across Lake County or the greater Chicagoland area, and you’re looking for custom railing installation in Vernon Hills, steel stair railings, security gates, or modern steel fences, contact us at Steel Porch Chicago. From clean mirror cuts to welded strength — we build safety into every inch. Call now for a free estimate and project consultation!
